Factory Price Membrane Filter Press For Mineral Dressing

Factory Price Membrane Filter Press For Mineral Dressing

Chamber Membrane Filter Press is suitable for almost all types of slurry, such as: ceramics industry, stone industry, glass industry,mining minerals industry, coal washing, sand washing,paper industry, food industry, chemical pharmacy industry,electroplating industry, textile dyeing, leather industry, municipal slurry etc.

Inquire Now Next Product

Description

Introduction:

Factory Price Chamber Membrane Filter Press For Mineral Dressing

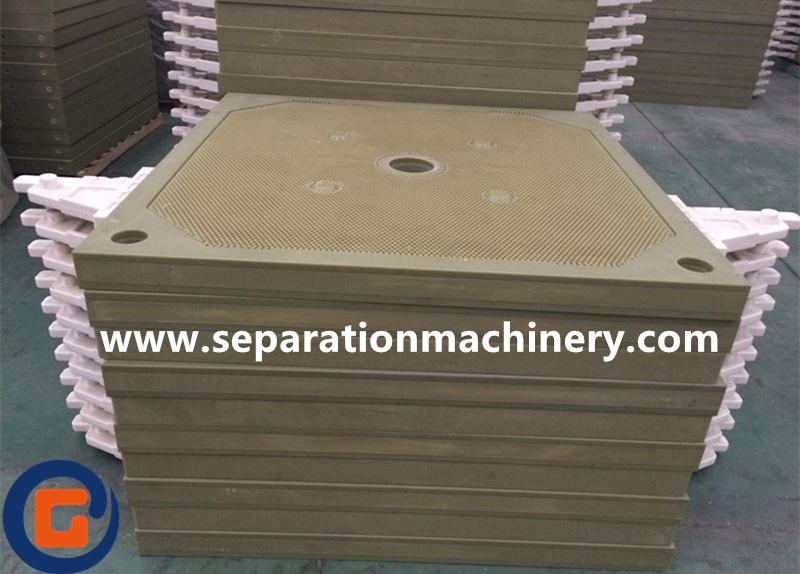

The filter plates of membrane type filter press consists of two kinds filter plates: membrane filter plate (whose surface is flat) and chamber plate (which as depth for filter cake storage). The filtering process as following. Under the pressure of feeding pump, material is pumped into filter chamber, solid and liquid are separated by filter medium (filter cloth). After filter cakes formed, the compressed air will be blown into the membrane plate and inflate it to squeeze cake, thus realize lower moisture. Membrane filter press specially applies to viscous material and users who require a strict cake dryness.Filter plates are made from reinforced PP by mould pressing. Membranes are recessed with PP plates integrally.

Factory Price Chamber Membrane Filter Press For Mineral Dressing

Technical Parameters:

Model	Filter area(m2)	Plate size(mm)	Cake thickness(mm)	Filter chamber volume(L)	Number of filter plate(PCS)	Pressure(Mpa)	Weight (kg)	Dimension(LWH)(mm)
XZ/800-30U	30	800*800	30	480	29	0.5-1.5	2080	365012001160
	40			640	39		2380	421012001160
	50			800	49		2700	477012001160
	60			960	59		3060	533012001160
XZ/870-30U	50	870*870	30	760	37	0.5-1.5	3580	422013001250
	60			920	45		3980	471013001250
	70			1080	53		4500	520013001250
	80			1200	59		5200	556013001250
XZ/1000-30U	80	1000*1000	30	1303	46	0.5-1.5	3470	516015001350
	90			1468	52		4040	552515001350
	100			1635	58		4360	589015001350
	120			1966	70		4960	662015001350
XZ/1250-30U	120	1250*1250	30	1800	44	0.5-1.5	6600	541017501600
	140			2120	52		7200	594017501600
	150			2280	56		7500	620017501600
	160			2400	59		7750	640017501600
	180			2720	67		8500	723017501600
	200			3000	74		9000	769017501600
	250			3800	93		10500	901517501600
XZ/2000-30U	500	2000*2000	40	7450	68	0.5-1.5	36500	1014030302400
	600			8960	82		40000	1127530302400
	800			11990	110		48000	1354030302400
	1000			14900	127		56000	1492030302400
