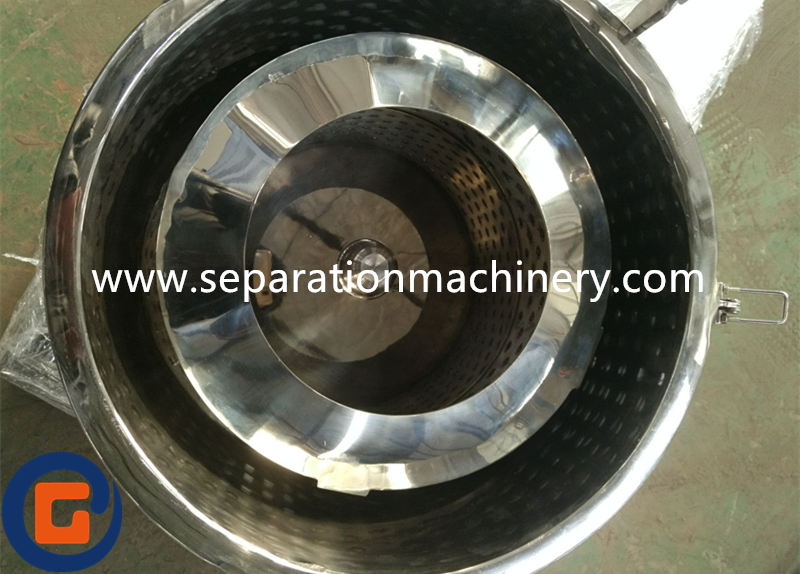

Model 200 And 300 Small Centrifuge For Biological Scientific School Laboratories, using belt drive, can be used to determine the material separation process parameters, can also be used as a product process pilot production.
Introduction
Model 200 And 300 Small Centrifuge For Biological Scientific School Laboratories, using belt drive, can be used to determine the material separation process parameters, can also be used as a product process pilot production.
Application
The centrifuge is widely used in teaching and laboratory in chemical, food, pharmaceutical, environmental protection and other industries.
Material Description
According to different material experimental requirements, the centrifuge material can be made of stainless steel 304, stainless steel 316L, titanium, Hastelloy, etc., and the coating can be made of plastic lining, rubber lining, polyurethane lining, PTFE lining, HALAR lining, etc.
Technical Parameter
| Model | Bowl Diameter (mm) | Bowl Volume(L) | Rotating speed(rpm) | Separation factor | Max. loading capacity (kg) | Motor power (kw) | Dimensions (L*W*H)(mm) | Weight(kg) |
| PSB100 | 100 | 0.3 | 4500 | 1133 | 0.5 | 0.18 | 250*200*190 | 15 |
| PSB150 | 150 | 1.0 | 3000 | 755 | 1.0 | 0.37 | 290*230*210 | 40 |
| PSB200 | 200 | 2.0 | 2800 | 872 | 3.0 | 0.37 | 600*360*330 | 75 |
| PSB300 | 300 | 5.0 | 2800 | 1340 | 10 | 1.1 | 660*650*460 | 120 |
| PSB450 | 450 | 20 | 1900 | 910 | 25 | 1.5 | 980*750*660 | 265 |
