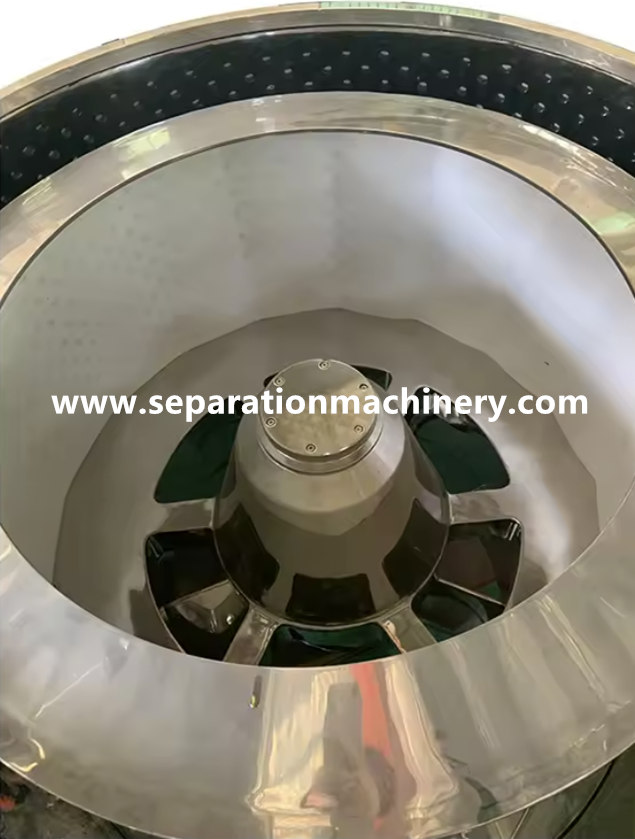

PGZ 1000 Automatic Peeler Scraper Discharge Centrifuge For Sugar

Product Description:

PGZ series centrifuge is a type of centrifugal separation machinery with high scientific content, and several configuration options are available. Featuring asepsis, sanitation, enclosed explosion-proof, multiple safety protections and several configuration options, this series centrifuge is controlled by a fully-automatic program, and has been widely used in such industries as pharmacy, fine chemistry and food.

Operating principle:

The automatic bottom discharge scraper centrifuge is vertical fully-automatic filtration centrifuge. The motor drives the basket to rotate at high speed through the belt, and under the control of pre-written program, the material to be separated is fed into the basket through the feed system. After the material is filtered through the filtration medium (filter cloth/screen) under the action of centrifugal force, the liquid phase discharges out of the centrifuge through the liquid pipeline, and the solid phase is retained in the basket. A material detection device is used to detected material filling position in real-time manner, and when the solid cake deposited in the basket reaches the specified holding capacity of the centrifuge, feeding stops. Then wash and dry the solid cake. After the solid cake meets requirements for knock-out, the centrifuge reduces to the scraping rate, under the hydraulic (pneumatic) control, the scraper device removes the solid cake, and then the cake id discharged at bottom outlet of the centrifuge.

Applications:

Apply to separating the suspension containing particles, but also fibers, especially the highly sticky, containing micro particles, poisonous and flammable materials, like antibiotics, vitamins, and minerals, salts, gourmet powders, foodstuff additives, amylum, sugar, chemical flavors, thiamin, plasters, Glauber's salt, bluestone, potassium chloride, borax, dyestuffs, pigment, resin, pesticides, and environmental protection. The centrifuge is highly automated, has large capacity and can be remote-controlled.

Technical Parameters:
