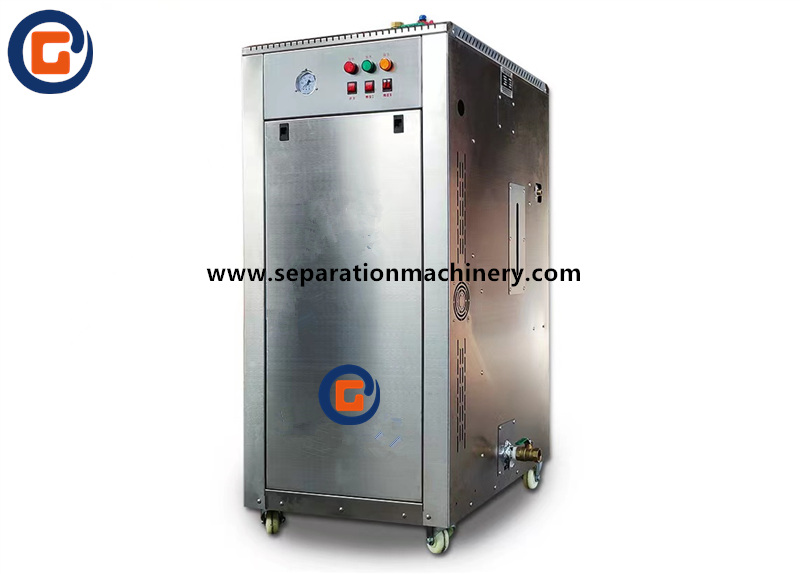

LDR series full automatic electric heating boiler is a kind of new high technology product which takes electricity as energy. It has the advantages of environmental protection, no pollution, no noise, convenient installation, small occupation, full automatic control and high thermal efficiency.
Introduction:
LDR series full automatic electric heating boiler is a kind of new high technology product which takes electricity as energy. It has the advantages of environmental protection, no pollution, no noise, convenient installation, small occupation, full automatic control and high thermal efficiency.
Application Range:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops, Advertising Company.
Technical Parameters:
Power | Rated Evaporation | Max Pressure | Max Temperature | Rated Current | Thermal efficiency | Size (MM) | Weight (KG) |
3KW | 4kg/h | 0.4/0.7Mpa | 151/171℃ | 6A | 99% | 680*520*850 | 50 |
6KW | 8kg/h | 0.4/0.7Mpa | 151/171℃ | 9A | 99% | 750*550*920 | 75 |
9KW | 12kg/h | 0.4/0.7Mpa | 151/171℃ | 14A | 99% | 750*550*920 | 79 |
12KW | 16kg/h | 0.4/0.7Mpa | 151/171℃ | 18A | 99% | 750*550*920 | 85 |
18KW | 24kg/h | 0.4/0.7Mpa | 151/171℃ | 27A | 99% | 850*600*1000 | 92 |
24KW | 32kg/h | 0.4/0.7Mpa | 151/171℃ | 41A | 99% | 850*600*1000 | 118 |
36KW | 50kg/h | 0.4/0.7Mpa | 151/171℃ | 55A | 99% | 900*650*1150 | 132 |
48KW | 65kg/h | 0.4/0.7Mpa | 151/171℃ | 70A | 99% | 900*650*1200 | 150 |
60KW | 80kg/h | 0.4/0.7Mpa | 151/171℃ | 79A | 99% | 900*650*1200 | 150 |
72KW | 100kg/h | 0.4/0.7Mpa | 151/171℃ | 113A | 99% | 800*870*1300 | 280 |
96KW | 132kg/h | 0.4/0.7Mpa | 151/171℃ | 146A | 99% | 1010*740*1210 | 280 |
108KW | 150kg/h | 0.4/0.7Mpa | 151/171℃ | 164A | 99% | 1010*740*1210 | 300 |
120KW | 170kg/h | 0.4/0.7Mpa | 151/171℃ | 183A | 99% | 1010*740*1210 | 300 |
