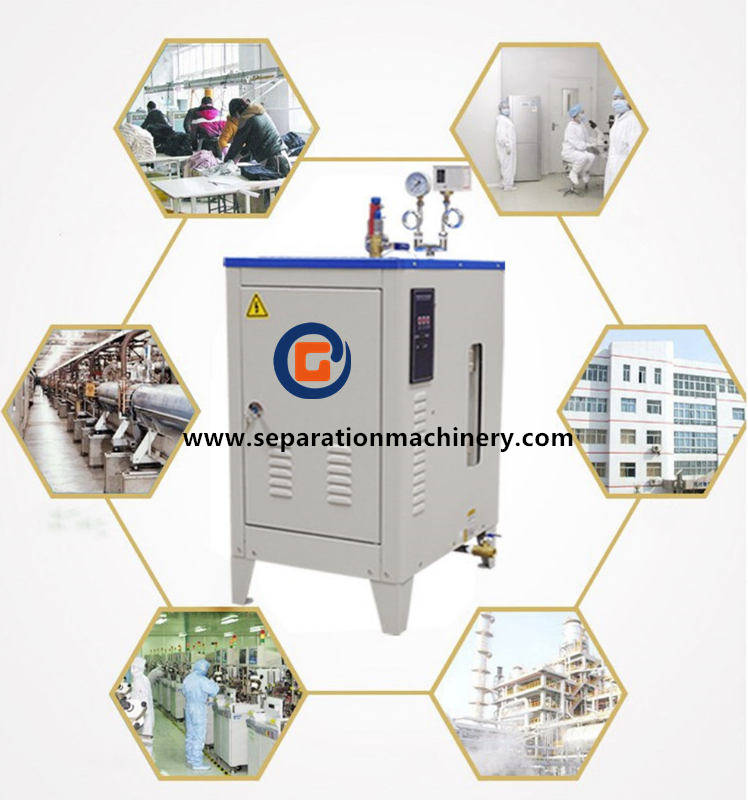

LDR electric steam generator is a kind of small vertical automatic heating equipment. It can generate steam quickly (about 3~5 minutes) and has high thermal efficiency. The whole set of equipment can generate steam only by connecting water source and power supply.
Introduction:
LDR electric steam generator is a kind of small vertical automatic heating equipment. It can generate steam quickly (about 3~5 minutes) and has high thermal efficiency. The whole set of equipment can generate steam only by connecting water source and power supply.
Product Features:
1.Small water capacity, fast water vapor speed, sufficient steam production and high efficiency;
2.The one-button operation of microcomputer can install water and electricity in place and press the button to open the generator. The generator will enter the automatic operation state, which is safe and simple.
3.The single power can be adjusted, and the operating load of the equipment can be adjusted according to the steam consumption, which is more energy-saving.
4.the product is equipped with high-quality pressure controller, safety valve, with overpressure, low water level, overheating protection and leakage protection multiple protection, to ensure product quality and use safety;
5.the whole machine factory, has been equipped with water pump, solenoid valve and one-way valve, only need to connect the power supply, steam pipe, water inlet and sewage pipe, save the installation cost and a lot of installation materials;
6.Reasonable and scientific product structure design, small size, convenient installation and flexible movement.
Application Range:
1. Washing and ironing industry: dry cleaning machine, drying machine, washing machine, dehydrator, ironing machine iron bucket and other equipment supporting use;Small garment factory, chemical production line with steam.
2. Packaging machinery industry: label machine, set label machine supporting use.
3. Biological and chemical industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifier and other biological and chemical equipment supporting the use.
4. Food machinery industry: tea fermentation;Steam kettle, sandwich pot, sterilizing pot, tofu machine, steam box, sterilizing box, packaging machine, coating equipment, sealing machine and other food and beverage equipment supporting use.
5. Medical industry: medical devices, drugs, etc.
6. Civil use: soybean milk boiling, steamed dim sum and soup;A small laundry is used for ironing.
7. Laboratory use: the laboratory USES a small amount of steam;For teaching experiments.
8. Electroplating surface treatment industry: electroplating tank, wash tank, tank of clean water temperature and constant temperature.
9. Other industries: hotel steamed rice thermal insulation, ironing, (oil field, automobile) steam cleaning industry, (hotel, dormitory, school, mixing station) hot water supply, (bridge, railway) concrete maintenance, (leisure beauty club) bath, heat exchange equipment.
Technical Parameters:
Power | Rated Evaporation | Max Pressure | Max Temperature | Rated Current | Thermal efficiency | Size (MM) | Weight (KG) |
3KW | 4kg/h | 0.4/0.7Mpa | 151/171℃ | 6A | 99% | 680*520*850 | 50 |
6KW | 8kg/h | 0.4/0.7Mpa | 151/171℃ | 9A | 99% | 750*550*920 | 75 |
9KW | 12kg/h | 0.4/0.7Mpa | 151/171℃ | 14A | 99% | 750*550*920 | 79 |
12KW | 16kg/h | 0.4/0.7Mpa | 151/171℃ | 18A | 99% | 750*550*920 | 85 |
18KW | 24kg/h | 0.4/0.7Mpa | 151/171℃ | 27A | 99% | 850*600*1000 | 92 |
24KW | 32kg/h | 0.4/0.7Mpa | 151/171℃ | 41A | 99% | 850*600*1000 | 118 |
36KW | 50kg/h | 0.4/0.7Mpa | 151/171℃ | 55A | 99% | 900*650*1150 | 132 |
48KW | 65kg/h | 0.4/0.7Mpa | 151/171℃ | 70A | 99% | 900*650*1200 | 150 |
60KW | 80kg/h | 0.4/0.7Mpa | 151/171℃ | 79A | 99% | 900*650*1200 | 150 |
72KW | 100kg/h | 0.4/0.7Mpa | 151/171℃ | 113A | 99% | 800*870*1300 | 280 |
96KW | 132kg/h | 0.4/0.7Mpa | 151/171℃ | 146A | 99% | 1010*740*1210 | 280 |
108KW | 150kg/h | 0.4/0.7Mpa | 151/171℃ | 164A | 99% | 1010*740*1210 | 300 |
120KW | 170kg/h | 0.4/0.7Mpa | 151/171℃ | 183A | 99% | 1010*740*1210 | 300 |
