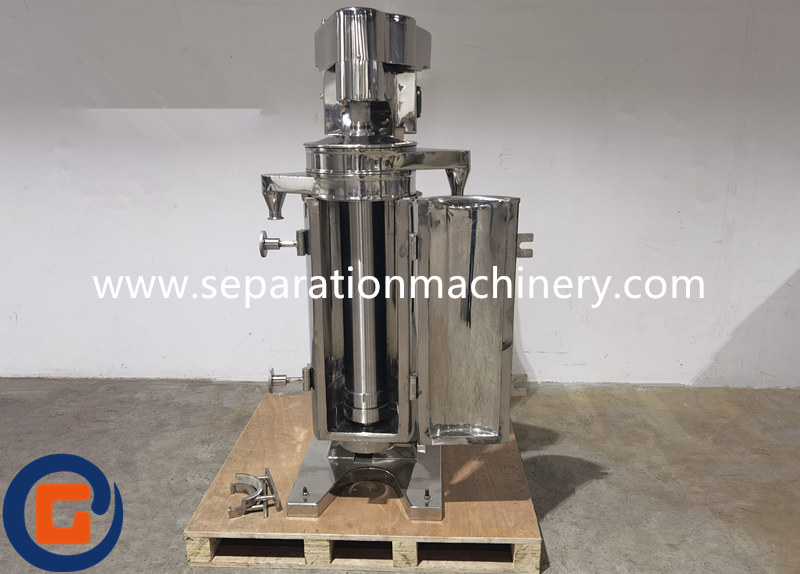

Tubular centrifuge used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micropowder, extract liquid from plants, separation of plasma and cell, separation of milk cream.
Introduction:
Tubular centrifuge used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micropowder, extract liquid from plants, separation of plasma and cell, separation of milk cream.
Working principles:
The machine is composed of machine body, transmission, drum, liquid tray, liquid enter bearing. On the top of drum is flexible main axis, bottom is damp drift bearing, main axis connected with links base buffer and passive wheel, motor through conveyor belt, fasten wheel provide the power for passive wheel, so as to drum rotate around itself axis,forming strong centrifuge force field.Materials launched from the inlet bottom, centrifugal force makes the material liquid rotates along the drum inner flow upward, and separate layer because of materials liquid different density.
Application:
It is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micropowder, extract liquid from plants, separation of plasma and cell,separation of milk cream.
(1) Oil separation(Avocado oil,Biodiesel, Coconut oil ,vegetable oil degumming ,de-soap, dewater, oil and water separation etc)
(2) Clarifying process for liquid solid product (oral liquid)
(3) Extraction of protein, seaweed and jelly(plant extraction, herb extraction,pigment extraction)
(4) Refined molasses
(5) Separation of blood
(6) Settlement of bacteria (yeast, E.coli, lactobacillus, bacillus subtilis, nitrobacter etc)
(7) Purifying paint, dye, various resin
(8) Processing of granular, crystalline and fibrous suspensions
(9) Separation of filterable and non-filterable sludge.
Technical Parameters
Model | Unit | GQ/GF45 | GQ/GF75 | GQ/GF105 | GQ/GF115 | GQ/GF125 | GQ/GF150 |
Bowl Diameter | mm | 45 | 75 | 105 | 115 | 125 | 150 |
Bowl Speed | r/min | 10000-30000 | 19000 | 16300 | 16300 | 15000 | 13400 |
Separation factor | -- | 19800 | 15200 | 15620 | 17000 | 15700 | 14300 |
Bowl Volume | L | 0.45 | 2.2 | 6 | 7 | 8 | 10 |
Throughput Capacity | L/H | 100 | 600 | 1200 | 1300 | 1500 | 2500 |
Motor | kw | 0.55 | 1.5 | 2.2 | 3.0 | 3.0 | 3.0 |
Weight | kg | 90 | 260 | 500 | 520 | 530 | 600 |
Dimension(L*W*H) | mm | 500*420*760 | 760*450*1120 | 550*850*1600 | 600*900*1600 | 650*950*1600 | 700*1000*1600 |
