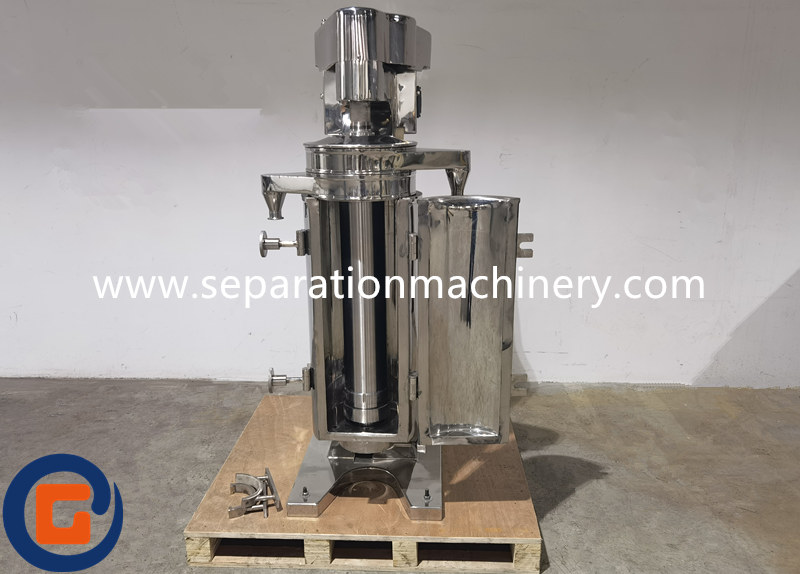

High Speed Tubular Centrifuge, also called Tubular Bowl Separator, is a kind of fine separation equipment suitable for suspensions with thin concentration, fine particles, and small density difference solid-liquid separation, or liquid-liquid-solid separation.
Description
High Speed Tubular Centrifuge, also called Tubular Bowl Separator, is a kind of fine separation equipment suitable for suspensions with thin concentration, fine particles, and small density difference solid-liquid separation, or liquid-liquid-solid separation. GF series Tubular Centrifuge from Grace Separation Machinery is a high speed solid bowl type machine for continuous separation of two immiscible liquids with density difference. This centrifuge is also used to separate small quantity of impurities from liquids.
Working principle
GF type tubular centrifuge is designed to separate two immiscible liquids of differing densities. The high centrifugal force generated causes the high density liquid to migrate toward the tube wall while the lower density liquid is displaced to the center of the tube. The separated liquids are then discharged at the top of the tube with dedicated outlets.
Application
It is indispensable equipment for pharmaceutical, food, chemical, biological product, fermentation broth, beverages, blood products and other industries.
Technical Parameters
Model | Unit | GQ/GF45 | GQ/GF75 | GQ/GF105 | GQ/GF115 | GQ/GF125 | GQ/GF150 |
Bowl Diameter | mm | 45 | 75 | 105 | 115 | 125 | 150 |
Bowl Speed | r/min | 10000-30000 | 19000 | 16300 | 16300 | 15000 | 13400 |
Separation Factor | -- | 19800 | 15200 | 15620 | 17000 | 15700 | 14300 |
Bowl Volume | L | 0.45 | 2.2 | 6 | 7 | 8 | 10 |
Throughput Capacity | L/H | 100 | 600 | 1200 | 1300 | 1500 | 2500 |
Motor | kw | 0.55 | 1.5 | 2.2 | 3.0 | 3.0 | 3.0 |
Weight | kg | 90 | 260 | 500 | 520 | 530 | 600 |
Dimension(L*W*H) | mm | 500*420*760 | 760*450*1120 | 550*850*1600 | 600*900*1600 | 650*950*1600 | 700*1000*1600 |
